CMc GPRS Box

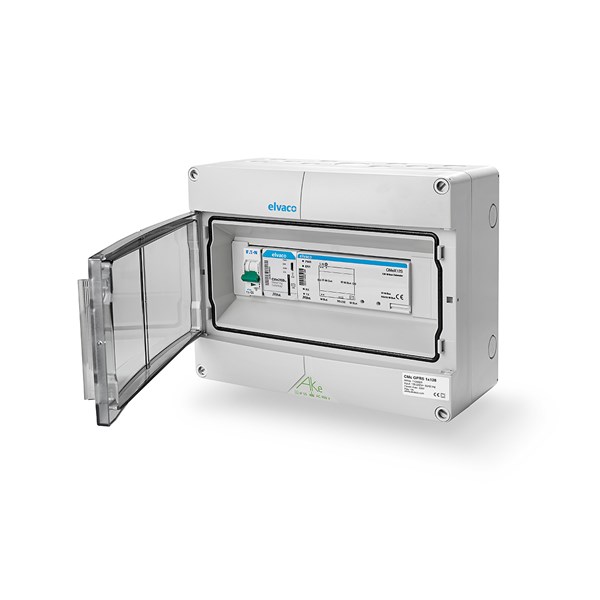

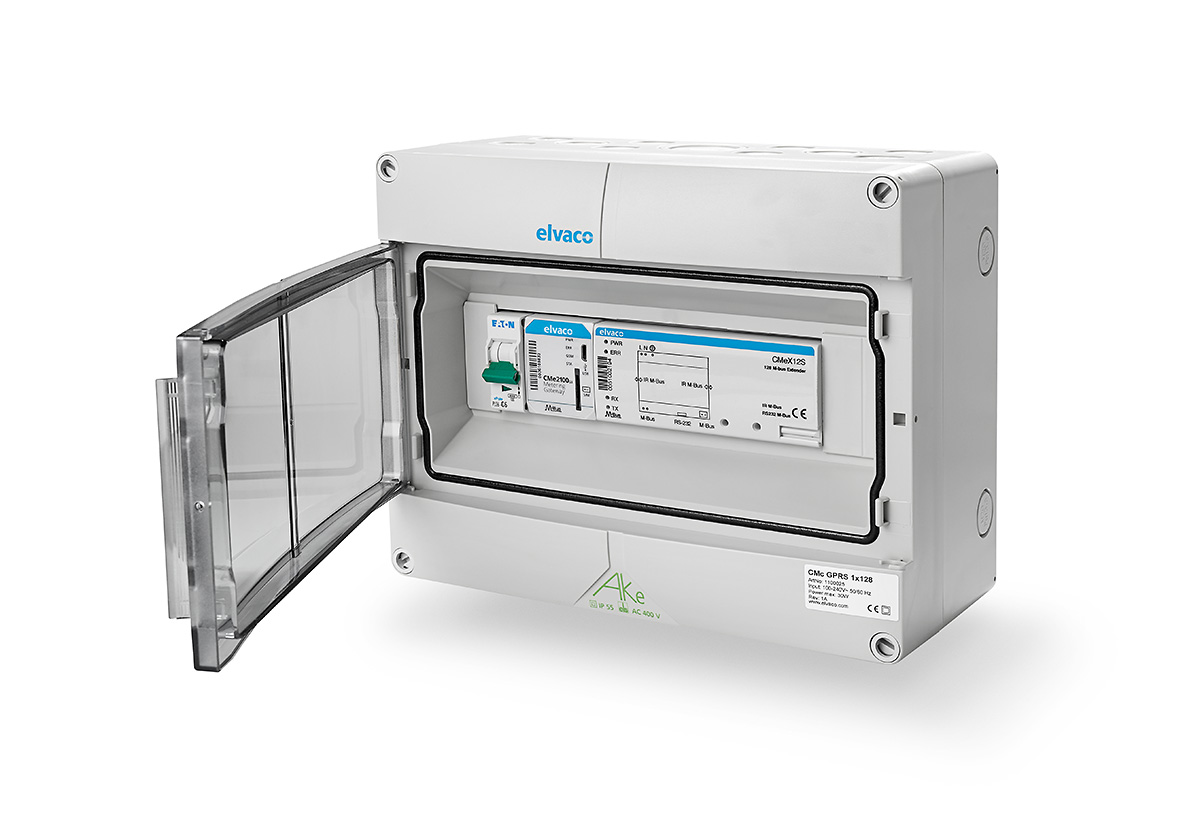

Elvaco's CMc GPRS Box consists of our M-Bus Metering Gateway CMe2100 and an M-Bus Master from the CMeX10-13S Series, fully assembled and connected in a protective enclosure at delivery. This box-build solution is used to read up to 128 M-Bus meters, compile meter data in customized reports and deliver it to a receiving system by a set time schedule and integration protocol via the mobile network. Our Wireless M-Bus Receiver CMeX50, which enables communication with up to 128 Wireless M-Bus meters is available as an add-on option.

Product variants

Page size:

Total: 8

Total: 8

Technical Specification

Mechanics

Casing material:: Polystyrene (box) and polycarbonate (transparent door)
Dimensions (w x h x d):: CM-Box 3: 100 x 150 x 96 mm, CM-Box 5: 125 x 200 x 122 mm, CM-Box 12: 250 x 200 x 122 mm
Protection class:: IP55
Mounting:: Wall-mount

Electrical connections

Supply voltage:: Screw terminal. Cable 0.5-2.5 mm², 0.5 Nm tightening torque
M-Bus master port:: Screw terminal. Cable 0.2-1.5 mm², 0.5 Nm tightening torque
USB master port:: Type A
USB slave port:: Type micro B
Network:: Mobile (Radio)

Electrical characteristics

Nominal voltage:: 100-240 VAC (±10%)
Frequency:: 50/60 Hz
Power consumption (max):: <9 W for solutions without RS232, <31 W for solutions with RS232
Power consumption (nom):: <2 W
Installation category:: CAT 3

Environmental specifications

Operating temperature:: -20 °C to +55 °C
Operating humidity:: 5 % to 90 %, non-condensing
Operating altitude:: 0-2000 m
Pollution degree:: Degree 2
Usage environment:: Indoors
Storage temperature:: -40 °C to +85 °C

Temperature sensor, margin of error

Humidity sensor, margin of error

User interface

Green LED:: Power
Red LED:: Error
Yellow LED:: CMe2100: GSM status, CMeX10-13S: ongoing M-Bus communication
Blue LED:: USB active
Push button:: Factory reset
Configuration:: SMS, HTTP, GSM CSD, Telnet

M-Bus

Interfaces:: Integrated M-Bus Master
M-Bus standard:: EN 13757
Transparent M-Bus:: GSM and TCP/IP (software limit does not apply to transparent M-Bus mode)
Decryption:: No

Wireless M-Bus

Integrated M-Bus Master

Nominal voltage, master port:: 28 VDC (CMeX10-11) or 42 VDC (CMeX10S-13S)
M-Bus baud rate, master port:: 2400 and 9600 bit/s
Maximum number of M-Bus devices (software limit):: 128
M-Bus search modes:: Primary, secondary
Maximum cable length:: 1000 m (100 nF/km, maximum 90 ohm)
Maximum number of unit loads (hardware limit):: 8T/12 mA - 128T/192 mA

Wireless M-Bus Receiver

M-Bus slave interface

General

Real-time clock backup:: 12 h
Real-time clock accuracy:: <2 s/day
Script engine:: Intelligent script engine for active content generation
Software/firmware update:: HTTP
Metering reports:: HTTP, FTP, SMTP (e-mail)

Data storage (examples)

1 meter:: 500 days
8 meters:: 63 days
32 meters:: 16 days
64 meters:: 8 days
128 meters:: 4 days

Mobile Network

GPRS class:: Up to 12
Band:: 850/900/1800/1900 MHz

Fixed Network (Ethernet)

Integration

Approvals

EMC:: EN 61000-6-2, EN 61000-6-3, EN 301489-1, EN 301489-7
Safety:: EN 61010-1, CAT 3

Connections and Interfaces

Transmissions

Casing material:: Polystyrene (box) and polycarbonate (transparent door)
Protection class:: IP55
Dimensions (w x h x d):: CM-Box 3: 100 x 150 x 96 mm, CM-Box 5: 125 x 200 x 122 mm, CM-Box 12: 250 x 200 x 122 mm
Weights:: CM-Box 3: 550 g, CM-Box 5: 850 g, CM-Box 12: 1450 g
Mounting:: Wall-mount
Antenna:: SMA female
SIM card:: Push-push type, standard size
Supply voltage:: Screw terminal. Cable 0.5-2.5 mm², 0.5 Nm tightening torque
M-Bus master port:: Screw terminal. Cable 0.2-1.5 mm², 0.5 Nm tightening torque
USB master port:: Type A
USB slave port:: Type micro B
Network:: Mobile (Radio)
Nominal voltage:: 100-240 VAC (±10%)
Frequency:: 50/60 Hz
Power consumption (max):: <9 W for solutions without RS232, <31 W for solutions with RS232
Power consumption (nom):: <2 W
Installation category:: CAT 3
Operating temperature:: -20 °C to +55 °C
Operating humidity:: 5 % to 90 %, non-condensing
Operating altitude:: 0-2000 m
Pollution degree:: Degree 2
Usage environment:: Indoors
Storage temperature:: -40 °C to +85 °C
Green LED:: Power
Red LED:: Error
Yellow LED:: CMe2100: GSM status, CMeX10-13S: ongoing M-Bus communication
Blue LED:: USB active
Push button:: Factory reset
Configuration:: SMS, HTTP, GSM CSD, Telnet
Interfaces:: Integrated M-Bus Master
M-Bus standard:: EN 13757
Transparent M-Bus:: GSM and TCP/IP (software limit does not apply to transparent M-Bus mode)
Decryption:: No
M-Bus baud rate, master port:: 2400 and 9600 bit/s
Nominal voltage, master port:: 28 VDC (CMeX10-11) or 42 VDC (CMeX10S-13S)
Maximum number of M-Bus devices (software limit):: 128
Maximum number of unit loads (hardware limit):: 8T/12 mA - 128T/192 mA
M-Bus search modes:: Primary, secondary
Maximum cable length:: 1000 m (100 nF/km, maximum 90 ohm)
Real-time clock backup:: 12 h
Real-time clock accuracy:: <2 s/day
Script engine:: Intelligent script engine for active content generation
Software/firmware update:: HTTP
Metering reports:: HTTP, FTP, SMTP (e-mail)
GPRS class:: Up to 12
Band:: 850/900/1800/1900 MHz
EMC:: EN 61000-6-2, EN 61000-6-3, EN 301489-1, EN 301489-7
Safety:: EN 61010-1, CAT 3
1 meter:: 500 days
8 meters:: 63 days
32 meters:: 16 days
64 meters:: 8 days
128 meters:: 4 days
