CMeX10S-13S

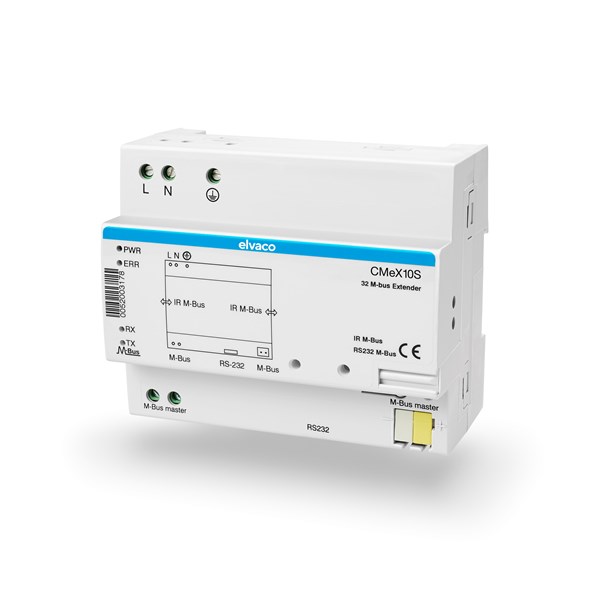

CMeX10S-13S M-Bus Master for 32-256 meters

CMeX10S-13S is an M-Bus Master which, by providing additional drive strength, extends the number of meters a CMe Series Gateway is able to use. The product is equipped with a unique IR Pass Through feature which enables up to four CMe/CMeX Series devices to communicate via IR, by stacking them side-by side. CMeX10S-13S also supports integration with existing M-Bus systems through RS232.

  • Total: 4
  • Total: 4

Mechanics

Casing material:
Polyamide
Dimensions (w x h x d):
105 x 90 x 65 mm (6 DIN modules)
Protection class:
IP20
Weight:
220 g
Mounting:
Mounted on DIN rail (DIN 50022) 35 mm

Electrical connections

Supply voltage:
Screw terminal. Cable 0.75-2.5 mm², 0.5 Nm tightening torque
M-Bus master port:
Pin terminal solid wire 0.6-0.8 Ø mm and screw terminal 0.25-2.5 mm²
RS232:
RJ45 8/8

Electrical characteristics

Nominal voltage:
100-240 VAC (±10%)
Frequency:
50/60 Hz
Power consumption (max):
<25 W
Power consumption (nom):
<1 W
Installation category:
CAT 3

Environmental specifications

Operating temperature:
-30 °C to +55 °C
Operating humidity:
5 % to 90 %, non-condensing
Operating altitude:
0-2000 m
Pollution degree:
Degree 2
Usage environment:
Indoors, can be extended with IP67 enclosure for outdoor use
Storage temperature:
-40 °C to +85 °C

Temperature sensor, margin of error

Humidity sensor, margin of error

User interface

Green LED:
Power
Red LED:
Error
Yellow LED 1:
M-Bus data transmission from device
Yellow LED 2:
M-Bus data transmission to device

M-Bus

Interfaces:
IR, integrated M-Bus Master
M-Bus standard:
EN 13757

Wireless M-Bus

Integrated M-Bus Master

Nominal voltage, master port:
42 VDC
M-Bus baud rate, master port:
300 and 2400 bit/s
M-Bus search modes:
Primary, secondary
Maximum cable length:
5000 m (100 nF/km, maximum 90 ohm)
IR Pass Through:
Yes, with a maximum of four devices stacked side by side
Maximum number of unit loads (hardware limit):
128T/192 mA, 256T/384 mA, 32T/48 mA, 64T/96 mA

Wireless M-Bus Receiver

M-Bus slave interface

General

Data storage (examples)

Mobile Network

Fixed Network (Ethernet)

Integration

Compatibility:
All M-Bus meters, ABB meters with IR interface, CMe/CMeX Series

Approvals

EMC:
EN 61000-6-2, EN 61000-6-3, FCC 47 CFR
Safety:
EN 62368-1 2018, UL 62368-1:2014 Ed.2], CSA C22.2#62368-1:2014 Ed.2]

Connections and Interfaces

Transmissions
