CMi-Box Receiver

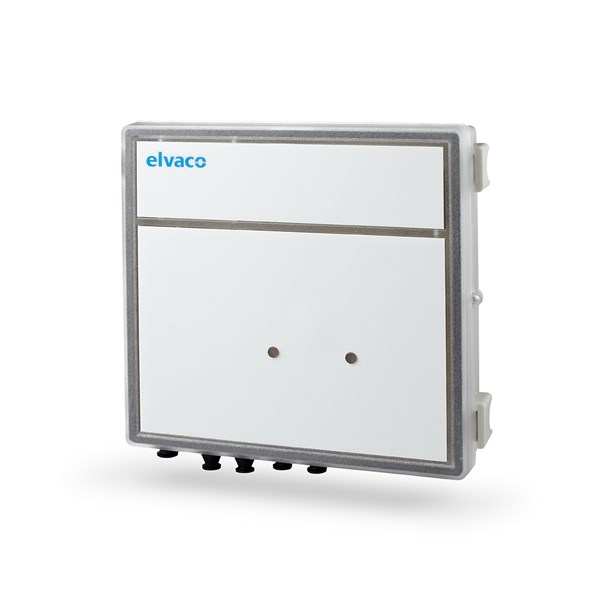

The CMi-Box Receiver is a powerful wireless M-Bus receiver, which is housed in a ready-to-install polycarbonate casing. When used in combination with an Elvaco CMe gateway, it processes meter data for electricity, water, gas and heating, using radio technology to handle up to 800 wireless M-Bus meters that are connected to it.

This CMi-Box is made up of a Wireless M-Bus Receiver mounted in a protective enclosure. The product can be used with a Gateway from Elvaco's CMe Series to enable communication with Wireless M-Bus meters. CMi-Box handles up to 800 meters, each one secured by individual encryption keys.

The wireless M-Bus Receiver comes in different variants that differ in terms of their voltage (24 V or 230 V) and the position of the antenna for wireless data transmission. In addition, customers can choose between conventional models and Enhanced devices.

The CMi-Box’s robust polycarbonate casing provides reliable protection for the M-Bus Receiver. The product is directly mounted on the wall using special brackets. The CMi-Box Receiver has interfaces to a wireless M-Bus receiver and M-Bus slaves.

Product variants

Page size:

Total: 8

CMi-Box Wireless M-Bus Receiver, 24 V, internal antenna

1100117

CMi-Box Wireless M-Bus Receiver, 230 V, internal antenna

1100118

CMi-Box Wireless M-Bus Receiver, 24 V, external antenna

1100119

CMi-Box Wireless M-Bus Receiver, 230 V, external antenna

1100120

CMi-Box Enhanced Wireless M-Bus Receiver, 230V, internal antenna

1100304

CMi-Box Enhanced Wireless M-Bus Receiver, 230V, external antenna

1100305

CMi-Box Enhanced Wireless M-Bus, 24V, internal antenna

1100306

CMi-Box Enhanced Wireless M-Bus Receiver, 24V, external antenna

1100307

Total: 8

Technical Specification

Mechanics

Casing material:: Polycarbonate
Dimensions (w x h x d):: 141 x 157 x 44 mm
Protection class:: IP54
Weight:: 445 g
Mounting:: Wall-mount with brackets

Electrical connections

Supply voltage:: 230 V power supply: 3 m cable included, 24 V power supply: PCB push connector
M-Bus slave port:: Screw terminal. Cable 0.5-2.5 mm², 0.5 Nm tightening torque

Electrical characteristics

Nominal voltage:: 230 V power supply: 100-240 VAC, 24 V power supply: 12-35 VAC or 12-48 VDC
Frequency:: 50/60 Hz
Power consumption (nom):: <0.2 W
Installation category:: CAT 2
Unit loads:: 1T/1.5 mA

Environmental specifications

Operating temperature:: -30 °C to +55 °C
Operating humidity:: 5 % to 90 %, non-condensing
Pollution degree:: Degree 2
Usage environment:: Indoors
Storage temperature:: -40 °C to +85 °C

Temperature sensor, margin of error

Humidity sensor, margin of error

User interface

M-Bus

Interfaces:: Wireless M-Bus Receiver, M-Bus slave
M-Bus standard:: EN 13757 and EN 13757-4
Decryption:: Yes

Wireless M-Bus

Integrated M-Bus Master

Wireless M-Bus Receiver

Modes:: S1, T1, C1
Maximum number of Wireless M-Bus devices:: 800
Radio frequency band:: 868 MHz
Encryption, Wireless M-Bus:: AES-128
RF sensitivity:: -105 dBm
OMS compliant:: Yes

M-Bus slave interface

M-Bus baud rate, slave port:: 300 and 2400 bit/s
Nominal voltage, slave port:: 21-42 VDC
Addressing modes:: Primary, secondary
Default address:: 251

General

Data storage (examples)

Mobile Network

Fixed Network (Ethernet)

Integration

Approvals

EMC:: EN 61000-6-2, EN 61000-6-3
Safety:: EN 61010-1, CAT 2

Connections and Interfaces

Transmissions

Casing material:: Polycarbonate
Protection class:: IP54
Dimensions (w x h x d):: 141 x 157 x 44 mm
Weight:: 445 g
Mounting:: Wall-mount with brackets
Antenna:: Built-in, or optionally external via SMA female
Supply voltage:: 230 V power supply: 3 m cable included, 24 V power supply: PCB push connector
M-Bus slave port:: Screw terminal. Cable 0.5-2.5 mm², 0.5 Nm tightening torque
Nominal voltage:: 230 V power supply: 100-240 VAC, 24 V power supply: 12-35 VAC or 12-48 VDC
Frequency:: 50/60 Hz
Power consumption (nom):: <0.2 W
Installation category:: CAT 2
Unit loads:: 1T/1.5 mA
Operating temperature:: -30 °C to +55 °C
Operating humidity:: 5 % to 90 %, non-condensing
Pollution degree:: Degree 2
Usage environment:: Indoors
Storage temperature:: -40 °C to +85 °C
Interfaces:: Wireless M-Bus Receiver, M-Bus slave
M-Bus standard:: EN 13757 and EN 13757-4
Decryption:: Yes
Modes:: S1, T1, C1
Maximum number of Wireless M-Bus devices:: 800
Radio frequency band:: 868 MHz
Encryption, Wireless M-Bus:: AES-128
RF sensitivity:: -105 dBm
OMS compliant:: Yes
M-Bus baud rate, slave port:: 300 and 2400 bit/s
Nominal voltage, slave port:: 21-42 VDC
Addressing modes:: Primary, secondary
Default address:: 251
EMC:: EN 61000-6-2, EN 61000-6-3
Safety:: EN 61010-1, CAT 2

Documentation

Manuals

Data Sheets

Compliance

EU Declaration of Conformity CMi-Box WM-Bus

Software

Accessories

Spareparts

Downloads

More information

Elvaco’s powerful CMi-Box Receiver can read data from up to 800 wireless M-Bus meters within the remote meter reading infrastructure. The device uses a radio signal that does not require cables to be laid for remote meter reading. This greatly simplifies the installation process, reducing installation time and costs.

The CMi-Box Receiver works in conjunction with a gateway from Elvaco’s CMe series, such as the CMe2100 or CMe3100model. This combination makes it possible to process the recipient’s data. The security of the transmitted meter data is guaranteed thanks to individual encryption keys.

The wireless M-Bus Receiver is housed in a high-quality, durable casing made of polycarbonate. This is permanently mounted on the wall in the desired position. Interfaces to a wireless M-Bus receiver and the M-Bus meters enable flawless device communication in the metering infrastructure.

Numerous product variants with different voltage and antenna options ensure that you always have the right CMi-Box Receiver solution for your individual use case.
